PULS

ML30.100

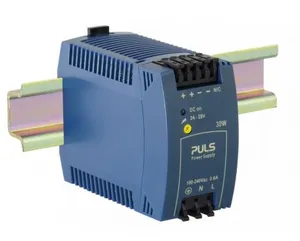

Product type: ML30.100

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24-28V, 1.3A, 30W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on ML30.100.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.23 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	45x75x91 mm
EAN code	875404000037
Product group	A-Standard
Derating	0.8W/°C for >+60°C
m_features	100-240V Wide-range input; Efficiency up to 87,5%; NEC Class 2 Listed; Full output power between -10 and +60°C; Quick-connect spring-clamp terminals; Adapter for Wall Mounting included
Output power	30W
Power factor	0.53
Output current	1.1A at 28V; 1.3A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	87.5%
Connection method	Spring clamps
Power losses, typ.	4.5W
Input inrush current	17A / 35A
Output current range	1.3 - 1.1A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	650000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	230g
External input fuse recommendation	B-10A / C-6A
