PULS

ML60.121

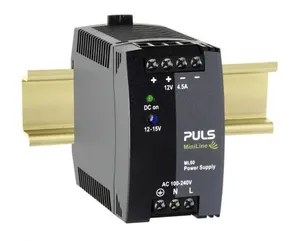

Product type: ML60.121

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 12-15V, 4.5A, 54W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on ML60.121.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.25 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	45x75x91 mm
EAN code	875404001706
Product group	A-Standard
Derating	1.4W/°C for >+60°C
m_features	100-240V Wide-range input; NEC Class2 compliant; Adjustable output voltage; Efficiency up to 87.2%; Low no-load losses and excellent partial-load efficiency; Compact design, width only 45mm; Full power between -10°C and +60°C; Large international approval package
Output power	54W
Power factor	0.5
Output current	3.6A at 15V; 4.5A at 12V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	12 - 15V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	87.2%
Connection method	Screw terminals
Power losses, typ.	7.9W
Input inrush current	16A / 32A
Output current range	4.5 - 3.6A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1690000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	250g
External input fuse recommendation	B-10A / C-6A
