PULS

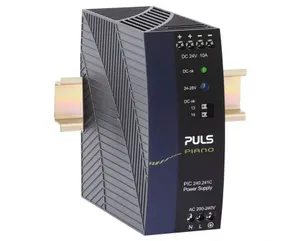

PIC240.241C

Product type: PIC240.241C

Standard Power Supply, Input: AC 200-240V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PIC240.241C.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.55 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	49x124x124 mm
EAN code	875404002352
Product group	A-Standard
Derating	6W/°C for >+55°C
m_features	Cost optimized power supply without compromizing quality or reliability; 200-240V Regional input voltage, efficiency up to 91,4%; DC-OK relay contact included; Rugged housing made of a high-grade, reinforced molded material; Full output power between -10 and +55°C; Extraordinarily compact, width only 49mm
DC-OK signal	yes
Output power	240W
Power factor	0.52
Output current	8.6A at 28V; 10A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 200 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	91.4%
Connection method	Screw terminals
Power losses, typ.	22.6W
Input inrush current	48A
Output current range	10 - 8.6A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	791000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	550g
External input fuse recommendation	B-16A / C-10A
