PULS

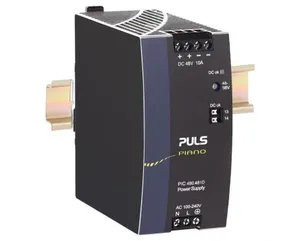

PIC480.481D

Product type: PIC480.481D

Standard Power Supply, Input: AC 100-240V, Output: DC 48-56V, 10A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PIC480.481D.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.81 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	59x124x127 mm
EAN code	875404002741
Product group	A-Standard
Derating	12W/°C for >+55°C
m_features	AC 100-240V wide-range input; Active PFC; Width only 59mm; Efficiency up to 95.7%; Safe HiccupPLUS overload mode; Full power between -25°C and +55°C; DC-OK relay contact
DC-OK signal	yes
Output power	480W
Power factor	0.970000
Output current	8.6A at 56V; 10A at 48V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
AC Input voltage	AC 100 - 240V (± 10%)
Adjustment range	48 - 56V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.7%
Housing material	Metal
Connection method	Screw terminals
Power losses, typ.	21.6W
Input inrush current	15A / 35A
Output current range	10 - 8.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	704000h
Ripple and noise voltage max.	100mVpp
Weight per unit (excl. packaging)	810g
External input fuse recommendation	B-10A / C-6A
