PULS

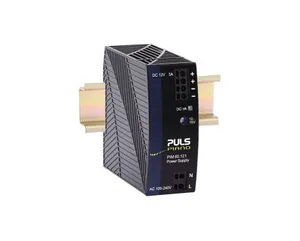

PIM60.121

Product type: PIM60.121

Standard Power Supply, Input: AC 100-240V, Output: DC 12-15V, 5A, 60W, push-in terminals

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PIM60.121.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.225 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	36x90x91 mm
EAN code	875404003199
Product group	A-Standard
Derating	1.44W/°C for +60 to +70°C
m_features	AC 100-240V wide range input; NEC CLASS 2 compliant; Cost optimized without compromising quality or reliability; No PE connection required; Width only 36mm; Efficiency up to 90.7%; Low no-load power losses; Full power between -10°C and +60°C; Push-in terminals
DC-OK signal	yes
Output power	60W
Power factor	0.470000
Output current	4A at 15V; 5A at 12V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (± 10%)
Adjustment range	12 - 15V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90.7%
Housing material	Polycarbonate
Connection method	Push-in clamps
Power losses, typ.	6.2W
Input inrush current	15A / 36A
Output current range	5 - 4A
Operating temp. range	-10°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1673000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	225g
External input fuse recommendation	B-6A / C-4A
