PULS

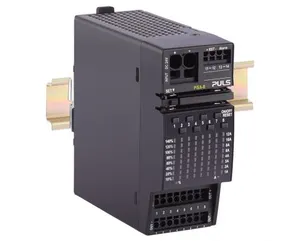

PISA-B-812-B1

Product type: PISA-B-812-B1

Standard Electronic Fuse Module, Input: DC 24V, Output: 8x1-12A adjustable, common signaling contact

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PISA-B-812-B1.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.37 KG / psc.
Commodity number	85363010
Country of origin	CZ
Dimensions (WxHxD)	52x124x130 mm
EAN code	875404003441
Product group	A-Standard
m_features	Eight current controlled outputs; Adjustable output currents for each channel; Selective tripping of overloaded channels; Compatible even with large capacitive Loads; Output currents displayed live on LED matrix; Remote reset or reset via push-buttons; Common alarm signal for tripped channels; Parameter settings can be locked by PIN-code; ON/OFF feature for each individual output; Easy wiring - distribution terminals for negative pole
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 19.2V - 30V
E classification	eClass 5.1 27141116; eClass 6.x 27141116; eClass 7.x 27141116; eClass 8.0 27141116; eClass 9.0 27141116; ETIM 4.0 EC000899; ETIM 5.0 EC000899
Housing material	Metal
Connection method	Push-in clamps
Power losses, typ.	10.8W
No-load losses, typ.	1W
Operating temp. range	-25°C to 70°C
Turn-on delay of outputs	750ms
Warranty period (months)	36
DC Input current at no load, typ.	40mA
Weight per unit (excl. packaging)	370g
Output current (sum of all outputs)	40A
Input voltage required to switch on the outputs, typ.	19Vdc
