PULS

PISA11.404

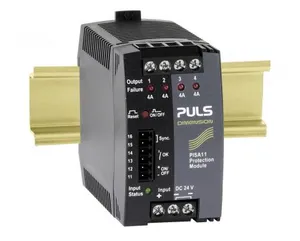

Product type: PISA11.404

Standard Electronic Fuse Module, Input: DC 24V, Output: 4x4A

Datasheet

Description

The PULS PISA11.404 is a 4-channel electronic protection module for 24V DC systems designed to protect individual loads against overload and short circuit. It features adjustable current limits per channel and early warning signaling. - Suitable for automation, control cabinets, and industrial power distribution. - Input voltage: 24V DC - 4 independent outputs with adjustable protection - LED indicators and signal contacts Designed to work seamlessly with PULS power supplies like ML100.200 or QS10.241. Order your PISA11.404 protection module today – fast shipping, original product, reliable supplier.

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PISA11.404.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.12 KG / psc.
Commodity number	85363010
Country of origin	CN
Dimensions (WxHxD)	45x75x91 mm
EAN code	875404001782
Product group	D-non-standard
m_features	One input and four current controlled outputs; Ensures sufficient supply voltage for critical loads even in the event of a fault; Protects small cable sizes against overload; Hassle-free turn-on of loads with large input capacitors; Wide temperature range between -25°C and +70°C; On/Off function of outputs; Compact design, width only 45mm; Remote monitoring and control function
Output current	4A 4A 4A 4A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Adjustment range	24 - 28V
DC Input voltage	DC 18V - 30V
E classification	eClass 5.1 27141116; eClass 6.x 27141116; eClass 7.x 27141116; eClass 8.0 27141116; eClass 9.0 27141116; ETIM 4.0 EC000899; ETIM 5.0 EC000899
Connection method	Screw terminals
Power losses, typ.	1.8W
No-load losses, typ.	1.0W
Operating temp. range	-25°C to 70°C
Turn-on delay of outputs	270ms
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2114000h
DC Input current at no load, typ.	43mA
Weight per unit (excl. packaging)	120g
Output current (sum of all outputs)	16A
Output current limitation min./max.	16.6 / 23.6A
Shutdown-times at short circuit, typ.	10ms
Input voltage protection level min./max.	21 - 21.8Vdc
Input voltage required to switch on the outputs, typ.	21.4Vdc
