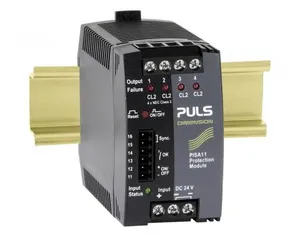

PULS

PISA11.CLASS2

Name: PISA11.CLASS2
Brand: PULS
Availability: PreOrder

Product type: PISA11.CLASS2

Electronic circuit breaker 24 V, 14.8 A 4 output channels: 4x NEC Class 2 listed; 100VA per channel

Description

Standard Electronic Fuse Module, Input: DC 24V, Output: 4x3.7A, fulfills NEC CLASS 2 power source requirements

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on PISA11.CLASS2.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.12 KG / psc.
Commodity number	85363010
Country of origin	CN / CZ
Dimensions (WxHxD)	45x75x91 mm
EAN code	875404001836
Product group	D-non-standard
DC output	DC 24 V
	ETIM 5.0 EC000899
Input	DC 18 V - 30 V
DC Input voltage	DC 18 V - 30 V
DC Input current at no load, typ	43 mA
Input voltage required to switch on the outputs, typ	21.4 Vdc
Input voltage protection level min/max	21 - 21.8 Vdc
Adjustment range	24 - 28 V
Output current	3.7 A 3.7 A 3.7 A 3.7 A
Output current (sum of all outputs)	14.8 A
Output current limitation min/max	16.6 / 23.6 A
Turn-on delay of outputs	270 ms
Shutdown-times at short circuit, typ	10 ms
Weight per unit (excl packaging)	120 g
Mounting method	DIN rail
Operating temp range	-25 °C to 70 °C
Connection method	Screw terminals
Power losses, typ	1.6 W
No-load losses, typ	1.0 W
MTBF SN 29500 @ 40 °C (h)	2198000 h
CRA relevant product	No
Warranty period (months)	36
Weight per piece (excl packaging)	120 g
E classification	eClass 5.1 27141116
