PULS

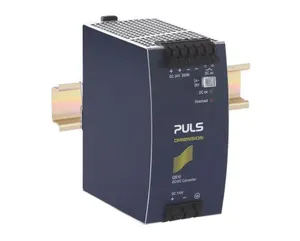

QS10.241-60

Product type: QS10.241-60

DC/DC converter for rolling-stock railroad applications, Input: DC 110V, Output: DC 24-28V, 8.3A, 200W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS10.241-60.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.92 KG / psc.
Commodity number	85043121
Country of origin	CZ
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404002482
Product group	A-Standard
m_features	EN 50155 Railway compliant; Conformal coated PC-boards; Quick-connect spring-clamp terminals; 77-154Vdc wide-range input; Width only 60mm; Efficiency up to 93.0%; Excellent partial load efficiency; Minimal inrush current surge; Full power between -40°C and +70°C; DC-OK relay contact; Reverse input polarity protection
Output power	200W
Output current	7.1A at 28V; 8.3A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower for typ. 4s
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 110V (-30%/+40%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	93%
Connection method	Spring clamps
Power losses, typ.	15.0W
Output current range	8.3 - 7.1A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	688000h
Ripple and noise voltage max.	50mVpp
Weight per unit (excl. packaging)	920g
