PULS

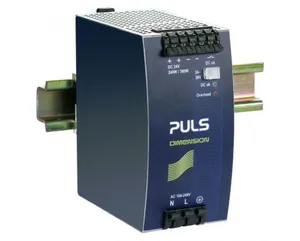

QS10.241

Product type: QS10.241

Standard Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS10.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.9 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404000167
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	100-240V Wide-range input, active PFC; Efficiency up to 93,5%, SEMI-F47-200 approved; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25 and +60°C; Spring-clamp terminals, DC-OK contact
DC-OK signal	yes
Output power	240W
Power factor	0.92
Output current	9A at 28V; 10A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 150V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	93.5%
Connection method	Spring clamps
Power losses, typ.	16.7W
Harmonic correction	active
Input inrush current	4A / 7A
Output current range	10 - 9A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	581000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	900g
External input fuse recommendation	B-6A / C-4A
