PULS

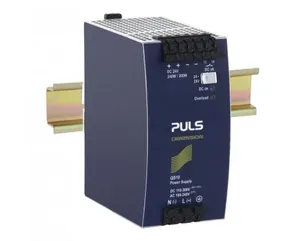

QS10.241-D1

Product type: QS10.241-D1

Same as QS10.241 but with enhanced DC 110-300V DC-Input voltage range

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS10.241-D1.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.9 KG / psc.
Commodity number	85043121
Country of origin	CZ
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404001850
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	Wide AC and DC-Input range; Efficiency up to 93,5%; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25 and +60°C; Spring-clamp terminals, DC-OK contact
DC-OK signal	yes
Output power	240W
Power factor	0.92
Output current	9A at 28V; 10A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 300V (± 20%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	93.5%
Connection method	Spring clamps
Power losses, typ.	19.1W 16.7W
Harmonic correction	active
Input inrush current	4A / 7A
Output current range	10 - 9A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	581000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	900g
