PULS

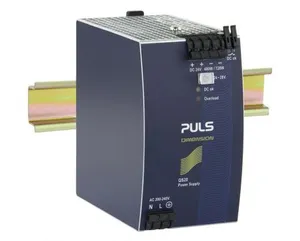

QS20.244

Product type: QS20.244

Standard Power Supply, Input: AC 200-240V, DC 110-150V, Output: DC 24-28V, 20A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS20.244.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.88 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	70x124x127 mm
EAN code	875404001317
Product group	A-Standard
Derating	12W/°C for >+60°C
m_features	200-240V Input; Efficiency up to 94,5%; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25 and +60°C; Quick-connect spring-clamp terminals
DC-OK signal	yes
Output power	480W
Power factor	0.5
Output current	17A at 28V; 20A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 200 - 240V (± 15%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.5%
Connection method	Spring clamps
Power losses, typ.	28.3W
Input inrush current	40A
Output current range	20 - 17A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	577000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	880g
External input fuse recommendation	B-10A / C-6A
