PULS

QS20.361

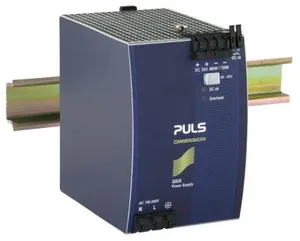

Product type: QS20.361

Standard Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 36-42V, 13.3A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS20.361.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.2 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	82x124x127 mm
EAN code	875404001218
Product group	A-Standard
Derating	12W/°C for >+60°C
m_features	100-240V Wide-range input, active PFC; Efficiency up to 94%; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25 and +60°C; Spring-clamp terminals, DC-OK contact
DC-OK signal	yes
Output power	480W
Power factor	0.9
Output current	11.4A at 42V; 13.3A at 36V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	36Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	36 - 42V
DC Input voltage	DC 110V - 150V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94%
Connection method	Spring clamps
Power losses, typ.	30.6W
Harmonic correction	active
Input inrush current	9A / 7A
Output current range	13.3 - 11.4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	469000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1200g
External input fuse recommendation	B-10A / C-10A
