PULS

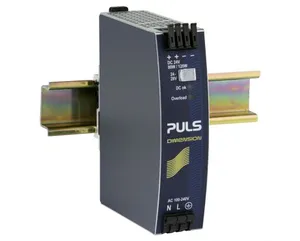

QS3.241

Product type: QS3.241

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24-28V, 3.4A, 80W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS3.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.44 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404000198
Product group	A-Standard
Derating	2W/°C for >+60°C
m_features	AC 100-240V wide-range input; Width only 32mm; Efficiency up to 90%; 150% (120W) peak load capability; Easy fuse tripping due to high overload current; Short-term operation down to 60Vac and up to 300Vac; Full power between -25°C and +60°C; Quick-connect spring-clamp terminals
Output power	80W
Power factor	0.47
Output current	3A at 28V; 3.4A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90%
Connection method	Spring clamps
Power losses, typ.	9.1W
Input inrush current	5A / 10A
Output current range	3.4 - 3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1451000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	440g
External input fuse recommendation	B-6A / C-6A
