PULS

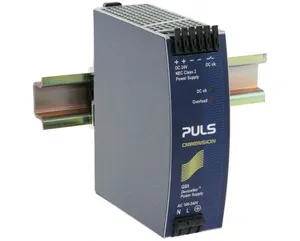

QS5.DNET

Product type: QS5.DNET

DeviceNet Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24V, 3.8A, 92W, fulfills NEC CLASS 2 power source requirements

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QS5.DNET.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.62 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	40x124x117 mm
EAN code	875404000228
Product group	A-Standard
Derating	2W/°C for >+60°C
m_features	100-240V Wide-range input; Active PFC; Efficiency up to 92%; SEMI-F47-200 approved; NEC Class 2 Listed; DeviceNet approved; Full output power between -25°C and +60°C; Spring-clamp terminals; DC-OK contact
DC-OK signal	yes
Output power	91W
Power factor	0.90
Output current	3.8AV; 3.8A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24V
DC Input voltage	DC 110V - 300V (± 20%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	92%
Connection method	Spring clamps
Power losses, typ.	7.9W
Harmonic correction	active
Input inrush current	9A / 11A
Output current range	3.8 - 3.8A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	831000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	620g
External input fuse recommendation	B-6A / C-3A
