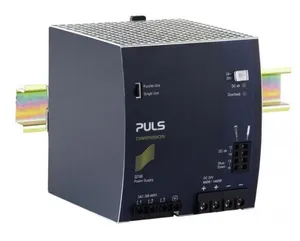

Product type: QT40.241

Standard Power Supply, Input: 3AC 380-480V, Output: DC 24-28V, 40A, 960W

Contact Person
Thomas Hoffmann
+49 3091508245
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QT40.241.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.5 KG / psc.
Commodity number85044082
Country of originChina / Czech Republic
Dimensions (WxHxD)110x124x127 mm
EAN code875404001461
Product groupA-Standard
Derating24W/°C for >+60°C
m_features3AC 380-480V wide-range input; Three input fuses included; Width only 110mm, weight only 1.5kg; 95.3% Full load and excellent partial load efficiencies; 50% BonusPower, 1440W for up to 4s; 100A Peak current for 10ms for easy fuse tripping; Active power factor correction (PFC); Active filtering of input transients; Negligibly low input inrush current; Full power between -25°C and +60°C; Current sharing feature for parallel use; Internal data logging for troubleshooting included; Remote control of output voltage; DC-OK relay contact; Shut-down input
DC-OK signalyes
Output power960W
Power factor0.88
Output current34.3A at 28V; 40A at 24V
Packaging unit1 pc
Power reserves50% BonusPower
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 380 - 480V (-15%/+10%)
Adjustment range24 - 28V
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95.3%
Connection methodScrew terminals
Power losses, typ.47.3W
Harmonic correctionactive
Input inrush current4.5A
Output current range40 - 34.3A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)375000h
Ripple and noise voltage max.100mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)1500g
External input fuse recommendationB-6A / C-6A
