PULS

QT40.481

Name: QT40.481
Brand: PULS
Availability: PreOrder

Product type: QT40.481

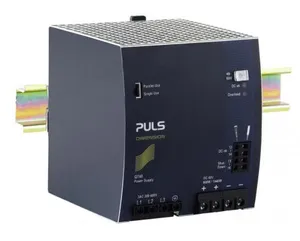

DIN rail power supplies for 3-phase system 48 V, 20 A

Description

Standard Power Supply, Input: 3AC 380-480V, Output: DC 48-54V, 20A, 960W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QT40.481.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.5 KG / psc.
Commodity number	85044083
Country of origin	CN / CZ
Dimensions (WxHxD)	110x124x127 mm
EAN code	875404001478
Product group	A-Standard
DC output	48 - 54 Vdc
	ETIM 5.0 EC002540
Input	AC 380 - 480 V (-15 %/+10 %)
AC Input voltage	AC 380 - 480 V (-15 %/+10 %)
Harmonic correction	active
Power factor	0.92
Input inrush current limitation	active
Input inrush current	4.5 A
External input fuse recommendation	B-6 A / C-6 A
Nominal voltage	48 Vdc
Adjustment range	48 - 54 V
Output current range	20 - 17.8 A
Output current	17.8 A at 54 V
Output power	960 W
Power reserves	50 % BonusPower
Derating	24 W/°C for +60 to +70 °C
Ripple and noise voltage max	150 mVpp
Weight per unit (excl packaging)	1500 g
Mounting method	DIN rail
Operating temp range	-25 °C to 70 °C
Connection method	Screw terminals
Efficiency, typ	95.4 %
Power losses, typ	46.3 W
MTBF SN 29500 @ 40 °C (h)	375000 h
DC-OK signal	yes
CRA relevant product	No
Warranty period (months)	36
Weight per piece (excl packaging)	1500 g
E classification	eClass 5.1 27049002
