PULS

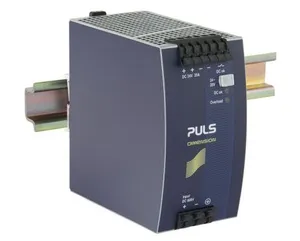

QTD20.241

Product type: QTD20.241

Standard DC/DC Converter, Input: DC 600V, Output: DC 24-28V, 20A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on QTD20.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.89 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	65x124x127 mm
EAN code	875404000792
Product group	A-Standard
Derating	12W/°C for >+60°C
m_features	DC 600V Input; Optimized for intermediate DC-bus of drive systems; Two input fuses for DC 600V included; 95% full load and excellent partial load efficiencies; Width only 65mm, weight only 890g; 25% BonusPower, 600W for up to 4s; Active filtering of input transients; Full power between -25°C and +60°C; Extremely low input inrush current surge; Reverse input polarity protection; DC-OK relay contact; Quick-connect spring-clamp terminals
DC-OK signal	yes
Output power	480W
Output current	17.5A at 28V; 20A at 24V
Packaging unit	1 pc
Power reserves	25% power reserves
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 600V (-20%/+40%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95%
Connection method	Spring clamps
Power losses, typ.	25.5W
Input inrush current	3A / 1.6A
Output current range	20 - 17.5A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	446000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	890g
External input fuse recommendation	B-6A / C-3A
