PULS

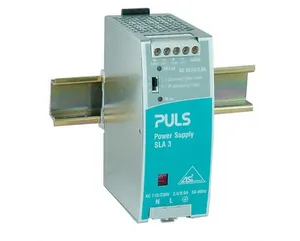

SLA3.100

Product type: SLA3.100

Standard AS-Interface Power Supply, Input: AC 100-120V/220-240V, Output: DC-ASi 30.6V, 2.8A, 85W, fulfills NEC CLASS 2 power source requirements

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on SLA3.100.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	49x124x102 mm
EAN code	875404000549
Product group	C-non-standard
Derating	2W/°C for >+60°C
m_features	115 / 230V Switchable input; Efficiency up to 90.5%; AS-Interface decoupling network included; Supports IR-Adressing mode; Full output power between -10 and +60°C
Power factor	>0.5
Output current	2.8A at 30.6V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	30.6Vdc
AC Input voltage	AC 100 - 120 / 220 - 240V (-15%/+10%)
Adjustment range	30.6V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90.5%
Connection method	Screw terminals
Power losses, typ.	10.5W 9.1W
Output current range	2.8A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1942000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	500g
