PULS

SLAD4.100

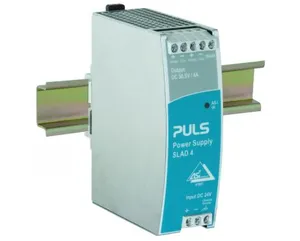

Product type: SLAD4.100

Standard AS-Interface DC/DC Converter, Input: DC 24V, Output: DC-ASi 30.6V, 4A, 122W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on SLAD4.100.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	40x124x102 mm
EAN code	875404001355
Product group	C-non-standard
Derating	3W/°C for >+60°C
m_features	DC/DC Converter, isolated output; AS-Interface decoupling network included; Negligibly low input inrush current; Full output power between -25 and +60°C
Output current	4A at 30.6V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	30.6Vdc
Adjustment range	30.6V
DC Input voltage	DC 24V (-25%/+35%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90.5%
Connection method	Screw terminals
Power losses, typ.	12.7W
Output current range	4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1247000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	500g
