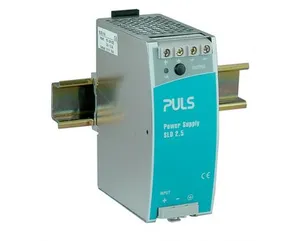

SLD2.100

Product type: SLD2.100

Standard DC/DC Converter, Input: DC 24V, Output: DC 5-5.5V, 8A, 40W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on SLD2.100.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.47 KG / psc.
Commodity number	85043121
Country of origin	CZ
Dimensions (WxHxD)	49x124x102 mm
EAN code	875404000587
Product group	C-non-standard
Derating	1.5W/°C for >+60°C
m_features	DC/DC Converter, isolated output; 24V input, 5V output; Efficiency up to 82%; Negligibly low input inrush current; Full output power between 0 and +60°C
Output power	40W
Output current	5.5V; 8A at 5V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	5Vdc
Adjustment range	5 - 5.5V
DC Input voltage	DC 24V (-25%/+50%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	82%
Connection method	Screw terminals
Power losses, typ.	8.5W
Output current range	8A
Operating temp. range	0°C to 40°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	510000h
Ripple and noise voltage max.	50mVpp
Weight per unit (excl. packaging)	470g
