PULS

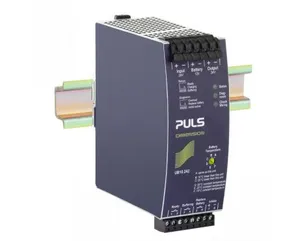

UB10.242

Product type: UB10.242

Standard DC-UPS Control Unit, Input: DC 24V, Output: 10A, for battery sizes between 17 and 130Ah

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.545 KG / psc.
Commodity number85044082
Country of originCN / CZ
Dimensions (WxHxD)49x124x117 mm
EAN code875404001515
Product groupA-Standard
m_features Requires only one 12V battery for a 24V output; Allows batteries between 17Ah and 130Ah; Battery charging with temperature tracking; Stable output voltage in buffer mode; Superior battery management for longest battery life; Comprehensive diagnostic and monitoring functions; Replace battery signal included; Electronically overload and short circuit protected; 50% Power reserves
Output current 15A; 10A
Packaging unit 1 pc
Product status Lead time on request
Mounting method DIN rail
Nominal voltage 24Vdc; 22.5Vds
Storage element External lead acid battery
DC Input voltage DC 24V
E classification eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method Spring clamps
Allowed battery size 12V, 17 to 130Ah
Operating temp. range -25°C to 50°C
Warranty period (months) 36
MTBF SN 29500 @ 40°C (h) 886000h
Weight per unit (excl. packaging) 545g
Int. current consumption (incl. charging current) 2.2A
Temperature tracking of the end-of-charge voltage manual/automatic
