PULS

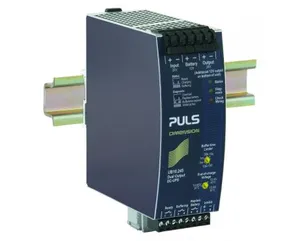

UB10.245

Product type: UB10.245

Standard DC-UPS Control Unit, Input: DC 24V, Output1: DC 24V, 10A, Output2: DC 12V, 5A, max. 240W, for battery sizes between 3.9 and 40Ah

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on UB10.245.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	49x124x117 mm
EAN code	875404001362
Product group	A-Standard
Derating	0.25W/°C for >+60°C
m_features	24V DC-UPS with an additional 12V output for various applications; Only one 12V battery required; Stable output voltage in buffer mode; Superior battery management for longest battery life; Comprehensive diagnostic and monitoring functions; Replace battery signal included; Electronically overload and short circuit protected; 50% Power reserves
Output current	15A; 10A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc; 22.5Vds
Storage element	External lead acid battery
DC Input voltage	DC 24V
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Spring clamps
Allowed battery size	12V, 3.9 to 40Ah
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	788000h
Weight per unit (excl. packaging)	350g
Int. current consumption (incl. charging current)	1.3A
Temperature tracking of the end-of-charge voltage	manual-select
