PULS

UB20.241

Name: UB20.241
Brand: PULS
Availability: PreOrder

Product type: UB20.241

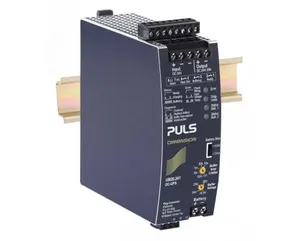

DC-UPS control unit 24 V, 20 A for battery sizes from 3.9Ah to 150Ah

Description

Standard DC-UPS Control Unit, Input: DC 24V, Output: 20A, for battery sizes between 3.9 and 150Ah

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on UB20.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.7 KG / psc.
Commodity number	85044060
Country of origin	CN / CZ
Dimensions (WxHxD)	46x124x127 mm
EAN code	875404001928
Product group	A-Standard
DC output	DC 24 V
	ETIM 5.0 EC000382
Input	DC 24 V (± 25 %)
DC Input voltage	DC 24 V (± 25 %)
Int current consumption (incl charging current)	2.3/4.3 A
Nominal voltage	24 Vdc
Output current	25 A
Output power	480 W
Power reserves	50 % BonusPower for typ. 4s
Derating	12 W/°C for +60 to +70 °C
Storage element	External lead acid battery
Allowed battery size	24 V, 3.9 to 150 Ah
Temperature tracking of the end-of-charge voltage	automatically with temp. sensor
Weight per unit (excl packaging)	700 g
Mounting method	DIN rail
Operating temp range	-40 °C to 70 °C
Connection method	Screw terminals
Power losses, typ	4.6 W
MTBF SN 29500 @ 40 °C (h)	649000 h
CRA relevant product	No
Warranty period (months)	36
Weight per piece (excl packaging)	700 g
E classification	eClass 5.1 27040603
