PULS

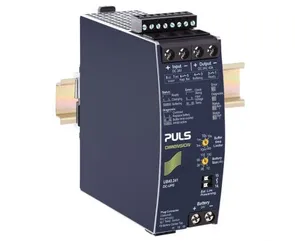

UB40.241

Product type: UB40.241

Standard DC-UPS Control Unit, Input: DC 24V, Output: 40A, for battery sizes between 12 and 200Ah

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on UB40.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.53 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	46x124x127 mm
EAN code
Product group	A-Standard
Derating	24W/°C for +50 to +70°C
m_features	1-Battery-Concept - Each 12V battery is charged and monitored separately for longest battery life, matching of batteries not necessary; Output is decoupled from the input to separate load circuits into buffered and non-buffered sections; Allows VRLA battery sizes between 12Ah and 200Ah; “Battery Size” selector for various battery sizes; 50% Extra output power for up to 5s; Superior battery management for longest battery life; Comprehensive diagnostic and monitoring functions; “Replace Battery” signal included; “Battery-Low Prewarning” signal included; Selectable buffer time limiter; Temperature controlled battery charging
Output power	960W
Output current	40A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Storage element	External lead acid battery
DC Input voltage	DC 24V (± 25%)
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Screw terminals
Allowed battery size	12Ah - 200Ah
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
Weight per unit (excl. packaging)	530g
Int. current consumption (incl. charging current)	3.2 / 6.2A
Temperature tracking of the end-of-charge voltage	automatically with temp. sensor
