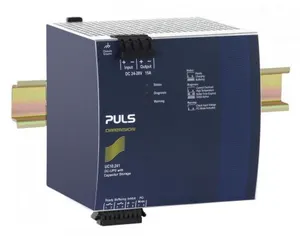

PULS

UC10.241

Product type: UC10.241

Standard DC-UPS with Capacitor Storage, Input: DC 24V, Output: 15A, 6kWs built-in energy storrage

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on UC10.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.15 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	126x124x117 mm
EAN code	875404001980
Product group	A-Standard
m_features	Built-in capacitors as energy source (EDLC electrochemical double layer capacitors); Wide temperature range between -40°C and +60°C; Typically >10 Years operational lifetime expectancy; Regulated output voltage in buffer mode; No ventilated cabinets required (No generation of hydrogen as VRLA batteries do); Short charging time, unit is rapidly back in ready mode; Output is decoupled from the input to separate load; Circuits into Buffered and Non-buffered Sections; Supports PC-Mode function
Output current	15A; 15A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc; 22.5Vds
Storage element	Electrochemical double layer capacitors
DC Input voltage	DC 24V
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Spring clamps
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	954000h
Weight per unit (excl. packaging)	1150g
