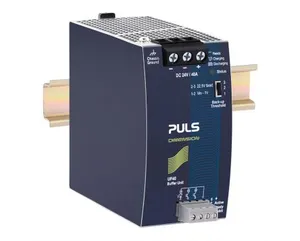

UF40.241

Product type: UF40.241

Standard Buffer Module, Supply voltage: 24V, Buffer current: 40A

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on UF40.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.04 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	64x124x142 mm
EAN code	875404002598
Product group	A-Standard
m_features	Buffering with electrolytic capacitors instead of lead acid batteries; Buffering of 24V loads; Minimum hold-up time 0.16s at 40A, 0.2s, longer hold-up time at lower loads; Clear status indication by status LED and signaling terminals; Quick-connect spring-clamp terminals
Output current	40A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Storage element	Electrolytic capacitors
DC Input voltage	DC 24V (-20%/+25%)
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Screw terminals
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2114000h
Weight per unit (excl. packaging)	1040g
