PULS

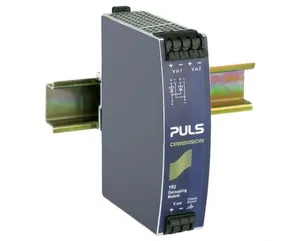

YR2.DIODE

Product type: YR2.DIODE

Standard Redundancy Module, Input: 2x DC 12-48V, Output: 20A, Spring-clamp terminals

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on YR2.DIODE.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.29 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404000716
Product group	A-Standard
Derating	12W/°C for +60 to +70°C
m_features	Cost effective solution to build redundant systems; Dual input with single output; Two diodes (common cathode); DC 12-48V (120V) ±25% Wide-range input; Full power between -40°C and +60°C; Width only 32mm; Rugged metal housing; Quick-connect spring-clamp terminals; Easy wiring: Distribution terminal for negative pole included
Voltage drop	800mV
Input current	2 x 10A
Output current	20A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 12V - 48V (± 25%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210902; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Connection method	Spring clamps
Power losses, typ.	17.0W
No-load losses, typ.	0W
Output current range	20A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	47000000h
Nominal current per input	10A
Output current short circuit max.	25A
Weight per unit (excl. packaging)	290g
