PULS

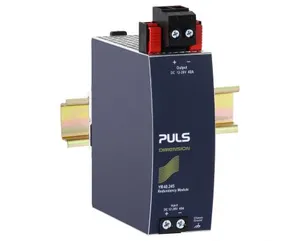

YR40.245

Product type: YR40.245

Standard Redundancy Module, Input: DC 12-28V, Output: 40A

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on YR40.245.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.34 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	46x124x127 mm
EAN code	875404002284
Product group	A-Standard
Derating	1W/°C for >+60°C
m_features	For N+1 and 1+1 redundant systems; Equipped with plug-connector for “Hot Swapping”; Suitable for all DIMENSION power supplies except QT40 series; Only 150mV voltage drop at 40A output current; Only 6.2W loss at 40A; 160% (65A) Peak load capability; Reverse input polarity protection; Full power between -40°C and +60°C; Width only 46mm; Rugged metal housing; Easy wiring: Distribution terminal for negative pole included
Voltage drop	150mV
Input current	1 x 40A
Output current	40A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 12V - 28V
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210902; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Connection method	Screw terminals
Power losses, typ.	6.2W
No-load losses, typ.	0.1W
Output current range	40A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	6400000h
Nominal current per input	40A
Output current short circuit max.	22A
Weight per unit (excl. packaging)	340g
