Siemens

1FG1507-1QF03-2FV1-Z +D21 +K06 +K82 +N30 +W90 +X59

Product type: 1FG1507-1QF03-2FV1-Z D21+K06+K82+N30+W90+X59

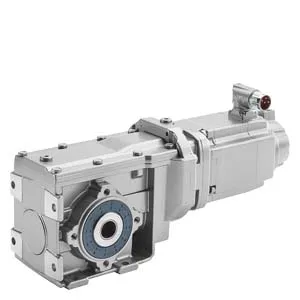

SIMOTICS S-1FG1 SERVO GEARED MOTOR

Datasheet

RoHS Compliant

Description

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox with detachment system KHF69 motor type CT 600V AH80 Mmax=25.0 Nm Pn=1.76 kW solid shaft V35x 70 absolute encoder single-turn 20-bit with DRIVE-CLiQ interface (encoder AS20DQI) flange B5; transmission ratio: 65.57 N1max=4500 rpm,N2max = 69 rpm, M2max=615 Nm. mounting position M1-B; oil CLP VG220, manual brake release spring-loaded brake M2BR=11 Nm color RAL 7030 stone gray customer-specific motor according to SMR-24-2017 pos. 20

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 10 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FG1507-1QF03-2FV1-Z +D21 +K06 +K82 +N30 +W90 +X59.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	50 KG / psc.
Commodity number	85015220
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	769
upc	Not available
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	50,000 Kg
lkz_fdb/ catalogid	D41
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	On request
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 18.09.2017
