Siemens

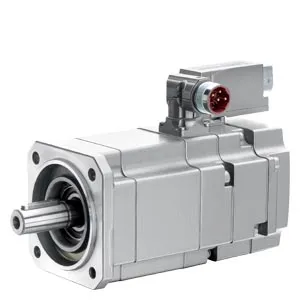

1FK7022-5AK71-1UG0-Z +P50 +P96 +Y84

Product type: 1FK7022-5AK71-1UG0-Z P50+P96+Y84

SYNCHRONOUS SERVOMOTOR, 1FK7

Datasheet

RoHS Compliant

Description

SIMOTICS S synchronous servo motor 1FK7 Compact 0.85 Nm, 100 K, 6000 rpm 0.38 kW, naturally cooled power/signal connectors Connector can be rotated by 270° IMB 5 design (IM V1, IM V3) flange 1; resolver multi-pole; (resolver P=3) with Drive-CLiQ interface plain shaft, Tolerance N without holding brake Degree of protection IP64 Y84: Customer specifications on the rating plate P50: Sequential number on label P96: Bulk packaging in box Customer-specific motor according to CIGO No.: 10066294

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FK7022-5AK71-1UG0-Z +P50 +P96 +Y84.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.8 KG / psc.
Commodity number	85015100
Country of origin	RO
Dimensions (WxHxD)
EAN code
Product group	762
upc	804766800788
notes	Please enter text for every Y option (using the Configurator).
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	1,800 Kg
lkz_fdb/ catalogid	SD.NC60KT-1FK7
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
