Siemens

1FL6034-2AF21-1AH1

Name: 1FL6034-2AF21-1AH1
Brand: Siemens
Availability: PreOrder

Product type: 1FL6034-2AF21-1AH1

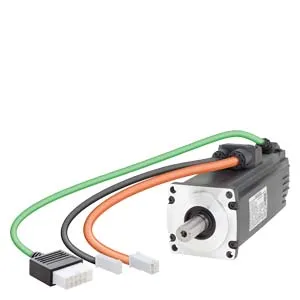

SERVOMOTOR 1FL6;3AC 230V

RoHS Compliant

Description

SIMOTICS S-1FL6 Operating voltage 230 V 3AC Pn=0.4 kW; Nn=3000 rpm M0=1.27 Nm; MN=1.27 Nm Shaft height 30 mm Incremental encoder TTL 2500 incr./rev. plain shaft Tolerance N with holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V90

Drive technology
Converters
Low-voltage converters
Servo drives
SINAMICS V90 basic servo drive system
1FL6 servomotors for SINAMICS V90

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FL6034-2AF21-1AH1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.92 KG / psc.
Commodity number	85015100
Country of origin	CN
Dimensions (WxHxD)	182x316x170 mm
EAN code	4042948670903
Product group	DMS
upc	804766258121
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	1FL6 servomotors for SINAMICS V90
net weight (kg)	1,920 Kg
lkz_fdb/ catalogid	NC81
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	50 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2018
