Siemens

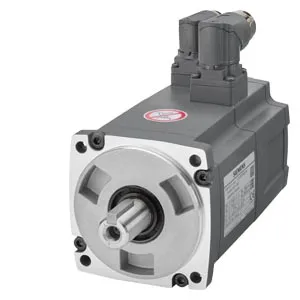

1FL6042-1AF61-2LH1

Product type: 1FL6042-1AF61-2LH1

SERVOMOTOR 1FL6;3AC 400V

Datasheet

RoHS Compliant

Description

SIMOTICS S-1FL6 Operating voltage 3AC 400 V Pn=0.4 kW; Nn=3000 rpm M0=1.9 Nm; MN=1.27 Nm Shaft height 45 mm, with angle plug; absolute encoder 20-bits (12-bit multi-turn) plain shaft, Tolerance N with holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70 & V90

Drive technology
Converters
Low-voltage converters
Servo drives
SINAMICS V90 basic servo drive system
1FL6 servomotors for SINAMICS V90

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FL6042-1AF61-2LH1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.5 KG / psc.
Commodity number	85015100
Country of origin	CN
Dimensions (WxHxD)	222x432x250 mm
EAN code	4025515699699
Product group	DMS
upc	804766789267
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	1FL6 servomotors for SINAMICS V90
net weight (kg)	4,500 Kg
lkz_fdb/ catalogid	NC81
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	50 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2018
