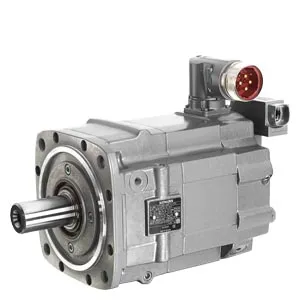

1FT7086-5WH71-1CH1-Z +Q09 +Y84

Product type: 1FT7086-5WH71-1CH1-Z Q09+Y84

SYNCHRONOUS MOTOR 1FT7

Datasheet

RoHS Compliant

Description

SIMOTICS S Synchronous motor 1FT7, M0=50 Nm (100K) NN=4500 rpm, PN=20.30 kW Water-cooled, IMB 5 design (IM V1, IM V3), Flange 1 (1FT6-compatible), power connector rotatable Absolute encoder 24-bit +12-bit multi-turn with DRIVE- CLiQ interface (encoder AM24DQI) Smooth shaft, with holding brake, radial eccentricity tolerance N Vibration severity grade A, degree of protection IP65, Q09: NDE bearing shield and enclosure flange made of special alloy, Y84: customer specifications on the rating plate Customer-specific motor according to SMR-22-2018

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FT7086-5WH71-1CH1-Z +Q09 +Y84.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	34.1 KG / psc.
Commodity number	85015230
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	762
upc	804766802195
notes	Please enter text for every Y option (using the Configurator).
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	34,100 Kg
lkz_fdb/ catalogid	SD.NC61ST-1FT7
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99H
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	55 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.03.2018
