Siemens

1FW6232-8WC05-6AB3

Name: 1FW6232-8WC05-6AB3
Brand: Siemens
Availability: PreOrder

Product type: 1FW6232-8WC05-6AB3

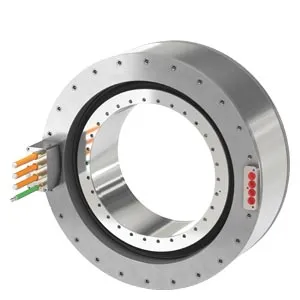

TORQUE MOTOR, STATOR

RoHS Compliant

Description

SIMOTICS T stator components 3-phase synchronous motor; integrated precision and power cooler; axial cable outlet 1 m; diameter 576 mm; length 110 mm; max. torque 1490 Nm; max. speed 943 rpm; max. current 100A eff with temperature sensor PTC130 and Pt1000

Drive technology
Motors
Motors for Motion Control
SIMOTICS T torque motors
SIMOTICS T-1FW6 built-in torque motors for SINAMICS S120

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1FW6232-8WC05-6AB3.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	42 KG / psc.
Commodity number	85030098
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	765
upc	Not available
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	SIMOTICS T-1FW6 built-in torque motors for SINAMICS S120
net weight (kg)	42,000 Kg
lkz_fdb/ catalogid	PM21
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	100 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Given
