Siemens

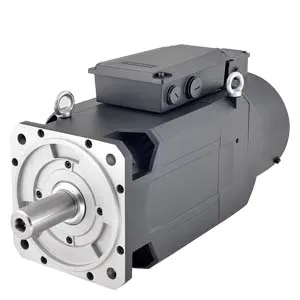

1PH1105-1HD12-2GA0

Product type: 1PH1105-1HD12-2GA0

SIMOTICS M 1PH1 MOTOR; 3AC 380V

Datasheet

RoHS Compliant

Description

Main motor 1PH1 for SINAMICS V70; Operating voltage 380 V 3AC Pn=5.5 kW; Nn=1000 rpm Mn=53 Nm Shaft height 100 mm Absolute encoder 20 bit shaft with feather key, half-key balancing forced ventilation Direction of air flow NDE->DE; IP54 compatible with the converters SINAMICS V70 Vibration severity R/A shaft end and flange Accuracy R Power and signal connection right

Drive technology
Motors
Motors for Motion Control
SIMOTICS M main motors
1PH1 servomotors
1PH1 for SINAMICS V70 spindle drive

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 60 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1PH1105-1HD12-2GA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	47.95 KG / psc.
Commodity number	85015220
Country of origin	CN
Dimensions (WxHxD)
EAN code
Product group	761
upc	Not available
group code	R220
metal factor	------71
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	1PH1 for SINAMICS V70 spindle drive
net weight (kg)	47,950 Kg
lkz_fdb/ catalogid	NC81
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	45 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2018
