Siemens

3KC9000-8TL50

Product type: 3KC9000-8TL50

TRANSFER CONTROL DEVICE 3KC ATC6500

Datasheet

RoHS Compliant

Description

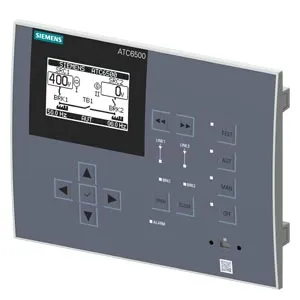

SENTRON 3KC ATC6500; LCD; 180x240 mm; transfer control device for control of MCCB, ACB, for load transfer between main and standby power supply; additional control of a coupling switch possible; control panel instrument; Un: 100...240 V AC 50/60 Hz 110...250 V DC; Un: 12...48 V DC, nominal voltage Ue: 100...600 V AC 50/60 Hz; screw terminal connection; integrated RS 485 interface, expandable with up to 3 additional modules

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Switch Disconnectors and Transfer Switching Equipment
SENTRON Transfer Control Devices

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 23 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3KC9000-8TL50.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.997 KG / psc.
Commodity number	85371098
Country of origin	IT
Dimensions (WxHxD)	150x127x183 mm
EAN code	4001869562506
Product group	14N
upc	Not available
group code	P360
metal factor	see also metal factor (further details are available on the help page)
product class	D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
quantity unit	1 Piece
product family	SENTRON Transfer Control Devices
net weight (kg)	0,997 Kg
lkz_fdb/ catalogid	LV10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.10.2017
