Siemens

3LD5220-0TL13

Product type: 3LD5220-0TL13

MOLDED CASE SWITCH 3LD5 UL

Datasheet

RoHS Compliant

Description

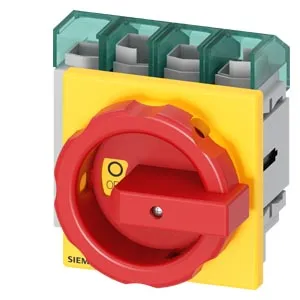

SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 4-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, front-mounted, rotary operating mechanism, red/yellow, 4-hole mounting of the handle, including terminal covers for the infeed side

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Switch Disconnectors
Fuseless Switch Disconnectors
SENTRON 3LD Main Control and EMERGENCY-STOP Switches up to 250 A
Basic Devices

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 23 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3LD5220-0TL13.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.607 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	96x94x116 mm
EAN code	4001869584164
Product group	12R
upc	Not available
group code	P360
metal factor	see also metal factor (further details are available on the help page)
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Basic Devices
net weight (kg)	0,607 Kg
lkz_fdb/ catalogid	LV10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	130 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 23.04.2020
