Siemens

3RA6813-8AC

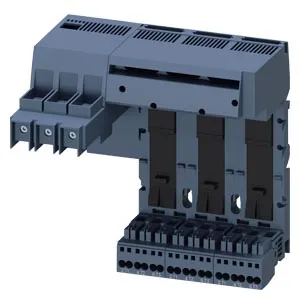

Product type: 3RA6813-8AC

INFEED SYS.;50/70QMM;SPR.LOADED;3 SLOTS

Datasheet

RoHS Compliant

Description

Infeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for compact load feeders Connection terminal maximum 50 mm2 / 70 mm2

Automation technology
Industrial controls
Load feeders and motor starters
For use in the control cabinet
SIRIUS 3RA6 compact starters
Infeed system for 3RA6

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 18 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RA6813-8AC.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.451 KG / psc.
Commodity number	85369095
Country of origin	CZ
Dimensions (WxHxD)	239x242x188 mm
EAN code	4011209745568
Product group	42F
upc	662643360639
group code	R711
metal factor	L-P-----
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Infeed system for 3RA6
net weight (kg)	1,451 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
