Siemens

3RK3211-2AA10

Product type: 3RK3211-2AA10

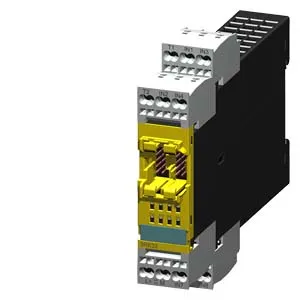

MSS 3RK3, EXPANSION MODULE 4/8 F-DI

Datasheet

RoHS Compliant

Description

SIRIUS, Extension module 3RK32 for modular Safety system 3RK3 4/8 F-DI, 24 V DC Can be parameterized via MSS ES 22.5 mm overall width Spring-type terminal Up to SIL3 (IEC 61508) Up to Performance Level E (ISO 13849-1) without connection cable

Automation technology
Industrial controls
Safety Technology
SIRIUS 3RK3 Modular Safety System
3RK32, 3RK33 expansion modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RK3211-2AA10.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85371098
Country of origin	DE
Dimensions (WxHxD)	28x108.5x147 mm
EAN code	4011209684393
Product group	42B
upc	754554961958
notes	Successor hint: successor 3SK2, S7-1200F or ET200SP when AS-i is used
group code	R711
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	3RK32, 3RK33 expansion modules
net weight (kg)	0,150 Kg
lkz_fdb/ catalogid	CC-IC10
plm effective date	Product phase-out since: 01.10.2021
product lifecycle (plm)	PM400:Phase Out Started
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.05.2012
