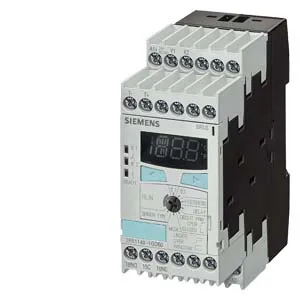

3RS1140-1GW60

Product type: 3RS1140-1GW60

TEMPERATURE MONITORING RELAY

Datasheet

Description

temperature monitoring relay Thermocouple J, T, E, K, N 2 threshold values digitally adjustable -99 °C to 999 °C 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm screw terminal !!!phased-out product!!! the preferred successor is 3RS2600-2BW30

Automation technology
Industrial controls
Monitoring and control devices
Relays
Monitoring relays
SIRIUS 3RS10, 3RS11, 3RS20, 3RS21 temperature monitoring relays
Relays, digitally adjustable for 1 sensor

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RS1140-1GW60.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.305 KG / psc.
Commodity number	85364900
Country of origin	Germany
Dimensions (WxHxD)	53x111.5x105 mm
EAN code	4011209544086
Product group	41H
upc	754554858265
group code	R711
metal factor	LAO-----
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Relays, digitally adjustable for 1 sensor
net weight (kg)	0,305 Kg
lkz_fdb/ catalogid	CC-IC10
plm effective date	Product phase-out since: 01.10.2020
product lifecycle (plm)	PM400:Phase Out Started
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.05.2012
