Siemens

3RT2017-4KB42

Product type: 3RT2017-4KB42

COUPLING CONT.,AC3:5,5KW 1NC DC24V, SDI

Datasheet

RoHS Compliant

Description

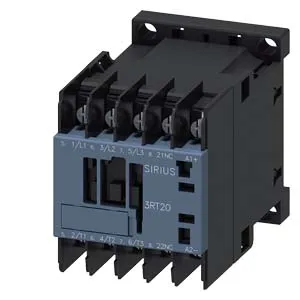

power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 1 NC, 24 V DC 0.7-1.25* Us, with suppressor diode integrated 3-pole, frame size S00 ring cable lug connection suitable for PLC outputs not expandable with auxiliary switch

Automation technology
Industrial controls
Switching devices
Contactors and contactor assemblies
Power contactors for switching motors
SIRIUS 3RT contactors, 3-pole, up to 250 kW

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RT2017-4KB42.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.29 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	50x61.5x77.5 mm
EAN code	4011209902671
Product group	41B
upc	040892957648
group code	R711
metal factor	LDP-----
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	SIRIUS 3RT contactors, 3-pole, up to 250 kW
net weight (kg)	0,290 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.10.2009
