Siemens

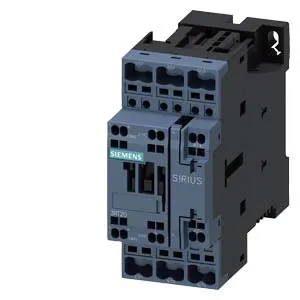

3RT2023-2NF30

Product type: 3RT2023-2NF30

CONTACTOR,AC3:4KW 1NO+1NC AC/DC 95-130V

Datasheet

RoHS Compliant

Description

power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 95-130 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, spring-loaded terminal, size: S0

Automation technology
Industrial controls
Switching devices
Contactors and contactor assemblies
Power contactors for switching motors
SIRIUS 3RT contactors, 3-pole, up to 250 kW

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RT2023-2NF30.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.571 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	54x108.5x115.5 mm
EAN code	4011209840775
Product group	41B
upc	Not available
group code	R711
metal factor	LCO-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	SIRIUS 3RT contactors, 3-pole, up to 250 kW
net weight (kg)	0,571 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	80 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.10.2009
