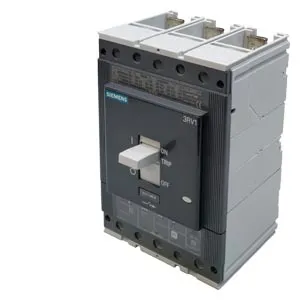

3RV1073-7GL10

Product type: 3RV1073-7GL10

Datasheet

Description

Molded case circuit breaker 3RV1 for motor protection Standard switching capacity Rated current In = 400 A electronic release Short-circuit protection adjustable 6-13 x In Overload protection adjustable 0.4-1 x In, Class 10A-33 Icu = 120 kA at 400 V 3-pole, Screw terminal including phase barriers

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3RV1073-7GL10.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	5.16 KG / psc.
Commodity number	85362090
Country of origin	Italy
Dimensions (WxHxD)	251x324x249 mm
EAN code	4011209768307
Product group	41E
upc	040892942408
notes	For this product a successor is available3VA2440-0MN32-0AA0Compare ProductsSuccessor hint: successor for SENTRON MCCB 3VA2
successor	3VA2440-0MN32-0AA0
group code	R711
metal factor	LDO-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	5,160 Kg
lkz_fdb/ catalogid	CC-IC10
plm effective date	Product phase-out since: 01.10.2022
successor description	circuit breaker 3VA2 IEC frame 630 breaking capacity class E Icu=200 kA @ 415 V 3-pole motor protection ETU350M, LSI, In=400A overload protection Ir=160A ... 400A short circuit protection Isd=3...13xIr, Ii=13xIn busbar connection
product lifecycle (plm)	PM400:Phase Out Started
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	20 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 08.01.2008
