Siemens

3SE5000-0AV07

Product type: 3SE5000-0AV07

, HEAVY DUTY,FOR 3SE5...

Datasheet

RoHS Compliant

Description

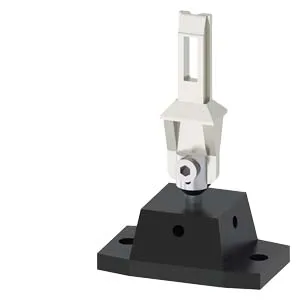

Separate actuator, universal radius actuator 'HEAVY DUTY' version vertically and horizontally adjustable, length = 77 mm for position switch with tumbler 3SE5312/3SE5322 and ASI 3SF13 and position switch with separate actuator 3SE51/3SE52 and AS-i with separate actuator 3SF11/3SF12

Automation technology
Industrial controls
Position and safety switches
SIRIUS 3SE5, 3SE2 mechanical safety switches w. separate actuator
3SE5, plastic enclosures
Enclosure width 31 mm acc. to EN 50047

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3SE5000-0AV07.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.127 KG / psc.
Commodity number	85389099
Country of origin	DE
Dimensions (WxHxD)	68x77x31 mm
EAN code	4011209789043
Product group	41K
upc	754554965994
group code	R711
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Enclosure width 31 mm acc. to EN 50047
net weight (kg)	0,121 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
