Siemens

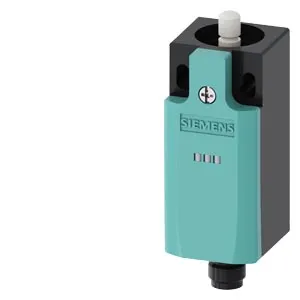

3SE5234-1BC05-1AF3

Product type: 3SE5234-1BC05-1AF3

SIRIUS POSITION SWITCH

Datasheet

RoHS Compliant

Description

Position switch Plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC slow-action contacts with M12 connector, 5-pole, fixed 2x LED yellow/green 24 V DC Teflon plunger Pin assignment: Pin1=21, Pin2=22 Pin3=14 LED green, Pin4=13 and LED yellow, Pin5=ground LED and LED yellow, Pin 5=ground LED

Automation technology
Industrial controls
Position and safety switches
SIRIUS 3SE5 mechanical position switches
3SE5, plastic enclosures
Enclosure width 31 mm acc. to EN 50047

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3SE5234-1BC05-1AF3.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.08 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	43x127x49 mm
EAN code	4011209694774
Product group	41K
upc	754554955575
group code	R711
metal factor	LA------
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Enclosure width 31 mm acc. to EN 50047
net weight (kg)	0,078 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
