Siemens

3SE5322-2SG22

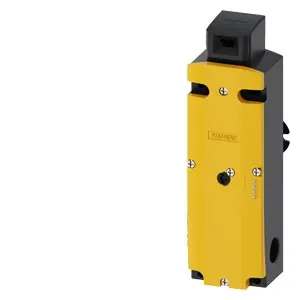

Product type: 3SE5322-2SG22

POS.SW. W.SOL.INTERL. W.ESC.REL.REAR+AUX

Datasheet

RoHS Compliant

Description

Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Spring-locked Escape release from the rear and auxiliary release on front Magnet voltage 115 V AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator. Actuator 3SE5000-0AV0. please order separately

Automation technology
Industrial controls
Position and safety switches
SIRIUS 3SE5, 3SE2 mechanical safety switches with tumbler
3SE5, plastic enclosures with locking force greater than 1 200 N

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 15 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3SE5322-2SG22.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.642 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	151x68.5x251.5 mm
EAN code	4011209683501
Product group	41K
upc	754554952048
group code	R711
metal factor	see also metal factor (further details are available on the help page)
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	3SE5, plastic enclosures with locking force greater than 1 200 N
net weight (kg)	0,642 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.10.2011
