Siemens

3SF1314-1SH11-1BA1

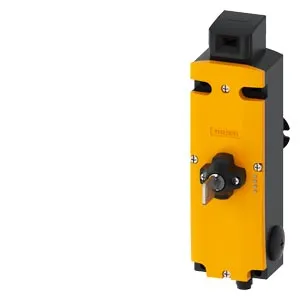

Product type: 3SF1314-1SH11-1BA1

POS.SW. W. ASISAFE ELECTR.INT.,MET.ENCL.

Datasheet

RoHS Compliant

Description

safety position switch with tumbler, locking force 2600 N, 5 directions of approaches, metal enclosure, M12 plug, ASIsafe integrated, channel 1=actuator 1 NC, channel 2=magnet 1 NC, spring-locked, escape release at the rear and auxiliary release on front with lock. magnet voltage 24 V AC/DC; no additional 24 V supply required. monitoring actuator 2 NC/1 NO, monitoring magnet 2 NC/1 NO, the matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately.

Automation technology
Industrial controls
Position and safety switches
SIRIUS 3SF1 mechanical safety switches for AS-Interface
3SF1 mechanical safety switches with tumbler
3SF1, metal enclosures with locking force greater than 2 000 N

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3SF1314-1SH11-1BA1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.296 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	195x251x93 mm
EAN code	4011209944695
Product group	42A
upc	804766133251
group code	R711
metal factor	see also metal factor (further details are available on the help page)
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	3SF1, metal enclosures with locking force greater than 2 000 N
net weight (kg)	1,296 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.03.2017
