Siemens

3SK2122-2AA10

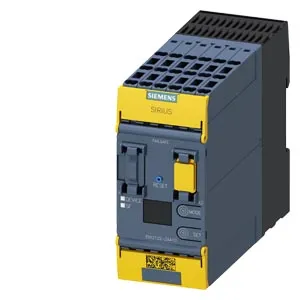

Product type: 3SK2122-2AA10

SIRIUS SAFETY RELAY 20 F-DI

Datasheet

RoHS Compliant

Description

SIRIUS safety relay basic unit 3SK2 series 20 F-DI, 4 F-DQ, 2 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 45 mm width spring-loaded terminal (push-in) up to SIL 3 (IEC 62061) up to performance level e (ISO 13849-1) output expansions 3SK1, coupling relay 3RQ1 and fail-safe motor starters 3RM1 via device connector connectable

Automation technology
Industrial controls
Safety Technology
Safety relays
SIRIUS 3SK safety relays
Basic units
SIRIUS 3SK2 basic units

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3SK2122-2AA10.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.369 KG / psc.
Commodity number	85371098
Country of origin	DE
Dimensions (WxHxD)	111x153x62 mm
EAN code	4047621004587
Product group	41L
upc	804766163906
group code	R711
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	SIRIUS 3SK2 basic units
net weight (kg)	0,390 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	80 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 28.05.2009
