Siemens

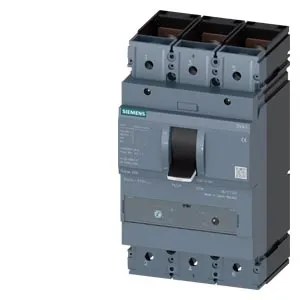

3VA1463-4EF32-0KG0

Product type: 3VA1463-4EF32-0KG0

MCCB_IEC_FS630_630A_3P_36KA_TM_ ATAM

Datasheet

RoHS Compliant

Description

circuit breaker 3VA1 IEC Frame 630 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM240, ATAM, In=630 A overload protection Ir=441 A...630 A short-circuit protection Ii=4...8 x In nut keeper kit circuit breaker 3VA1 IEC Frame 630 breaking capacity class S Icu=36 kA @ 415 V shunt trip left 208-277 V AC 50/60 Hz 1 auxiliary switch HP 1 trip alarm switch HQ

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3VA1463-4EF32-0KG0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	5.073 KG / psc.
Commodity number	85362090
Country of origin	CZ
Dimensions (WxHxD)	162x261x170 mm
EAN code	4042949331025
Product group	12P
upc	Not available
group code	P360
metal factor	LOA-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	5,073 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	10 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 24.02.2020
